Description

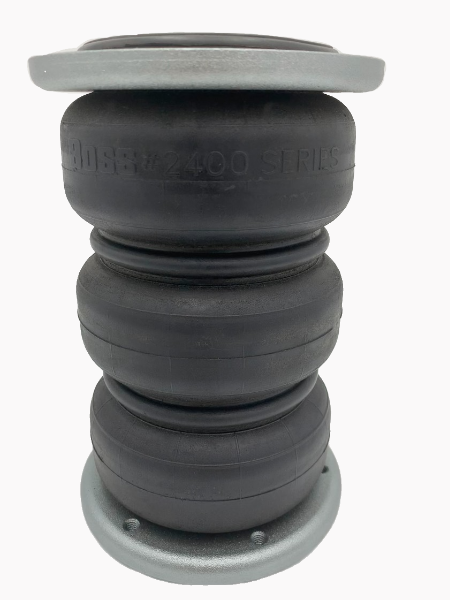

#2403 BOSS complete triple bellows airbag 2400lb capacity @ 100psi Government approved Tested to over 750psi Suitable for “Bag over” applications and as a stand alone air bag in Automotive suspensions.
Includes:
- 2403lb Extreme Series Bag
- Top and Bottom plate and stainless bolts.
- 12 countersunk stainless bolts
Fully Compressed – 65mm with 6mm ends fitted
Max Diameter- 135mm (widest when fully compressed)
Max height – 280mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 750psi
