Boss Airbag 2503 Complete

$225.00

2503 Boss triple Airbag Complete
2500lb Extreme Series triple Bag
Top and Bottom plate and stainless bolts.
12 countersunk stainless bolts

Fully Compressed – 85mm with 6mm ends fitted
Max Diameter- 155mm (widest when fully compressed)
Max height – 335mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 1000psi

SKU: BAG-2503 COMP Categories: , Tags: , ,

Description

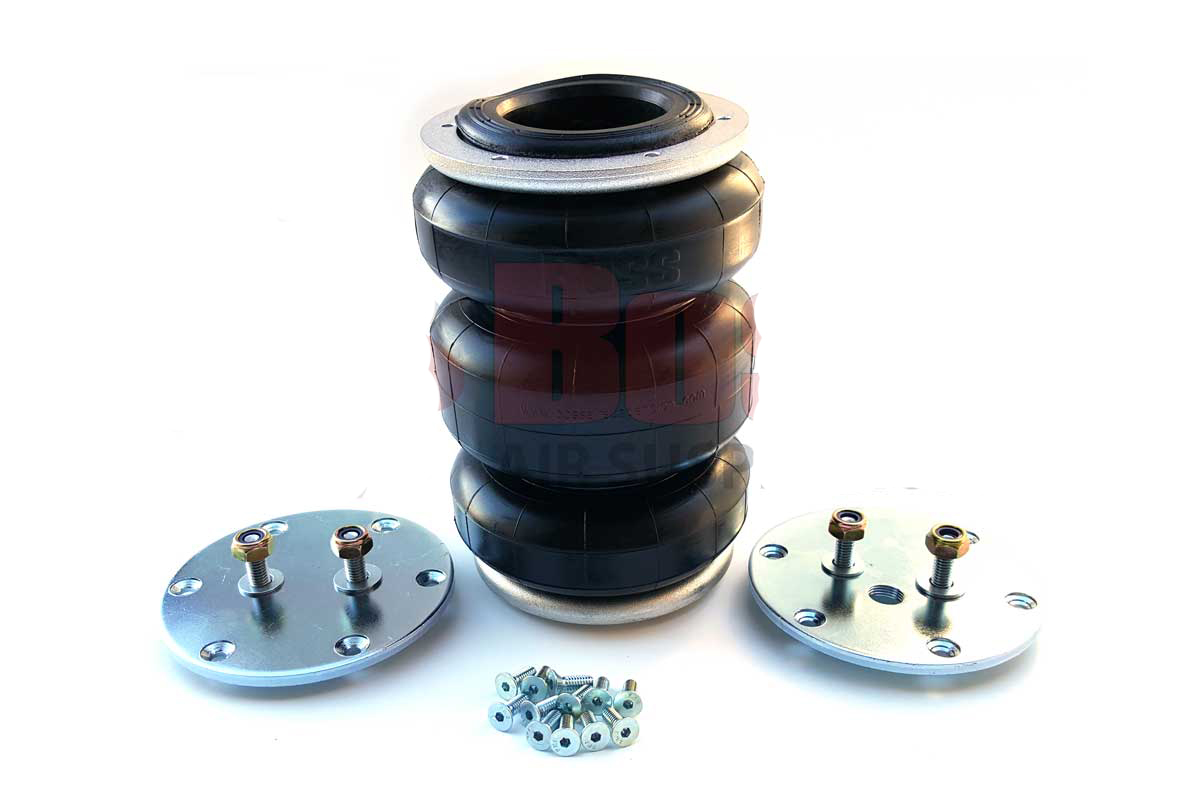

#2503 BOSS complete triple airbag 2500lb or 1136kg capacity @ 100psi Government approved Tested to over 750psi Suitable for “Bag over” applications and as a stand alone air bag in Automotive suspension.

Includes:

  • 2500lb Extreme Series triple Bag
  • Top and Bottom plate and stainless bolts.
  • 12 countersunk stainless bolts

Fully Compressed – 85mm with 6mm ends fitted
Max Diameter- 155mm (widest when fully compressed)
Max height – 335mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 1000psi

Additional information

Weight 3 kg
