Boss Triple Airbag 2603 Complete

$275.00

2603 Boss Airbag Complete
Fully compressed – 75mm with 6mm ends fitted
Max diameter – 190mm (widest when fully compressed)
Max Height – 329mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 1000psi

SKU: BAG-2603 COMP Categories: , Tag:

Description

#2603 triple bag complete have the same diameter as the #2600 bag but with 1 extra bellow making for a genuine 10″ travel (EXTENDED HEIGHT APPROX 380MM) airbag, perfect for coil replacements in 4wd vehicles and off road situations.

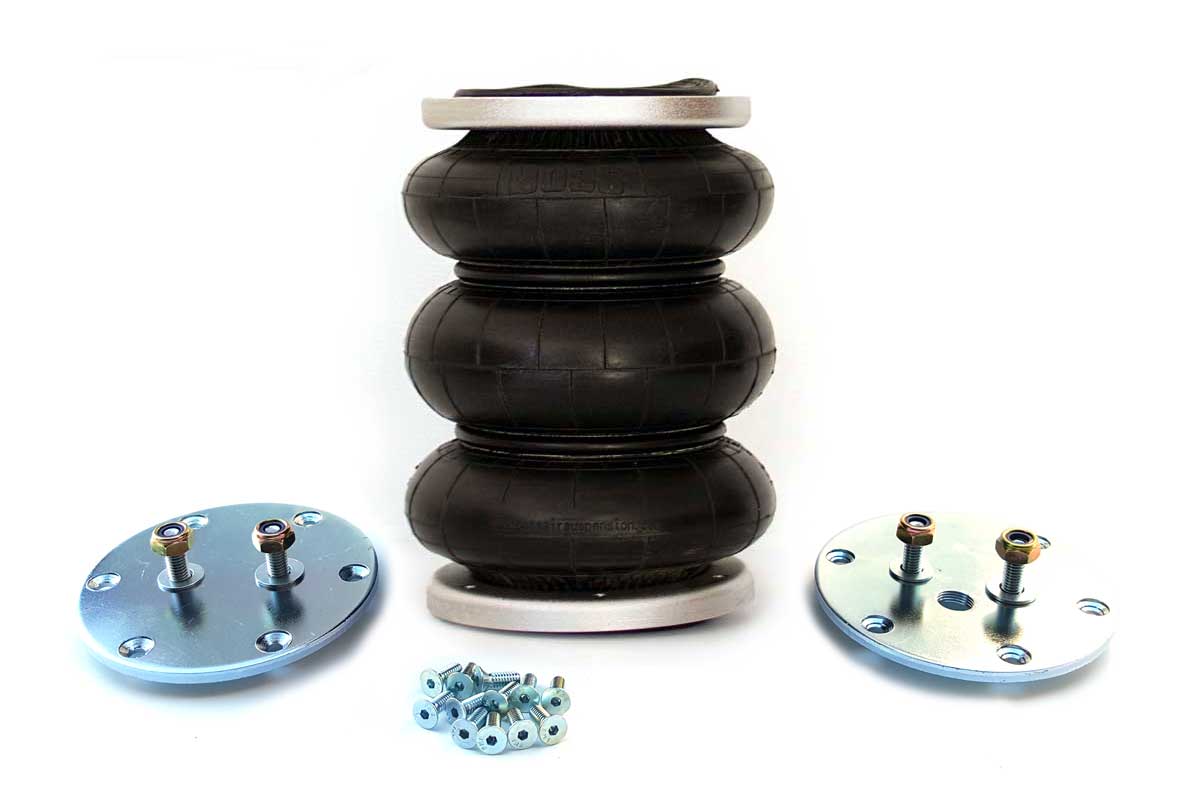

Includes:

  • 2600lb Extreme Series Tripple Bag
  • Top and Bottom plate and stainless bolts.
  • 12 countersunk stainless bolts

Fully compressed – 75mm with 6mm ends fitted
Max diameter – 190mm (widest when fully compressed)
Max Height – 380mm
Max working pressure 0-160psi
Test pressure – 480psi
Burst pressure – 1000psi

Additional information

Weight 4 kg
Dimensions 33 × 20 × 20 cm
