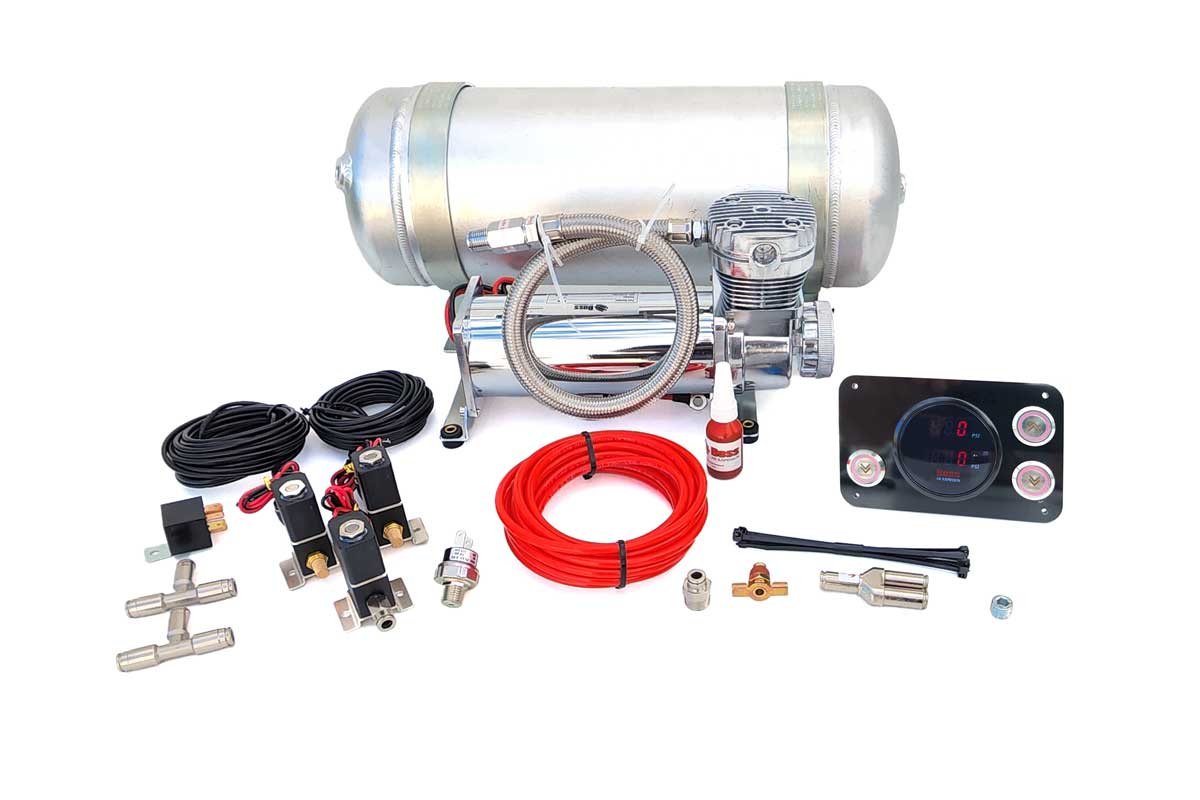

Impressor Incab Digital Kit

This kit is an all round air package kit for a 2 airbag system, onboard air for the 4×4 or running air lockers, tyres and small air tools.

Featuring our Boss dual read-out digital gauge, gauge panel with three led switches , PX06 12volt 1.8cfm 100% Duty Cycle Air Compressor for rapid refilling the 5 port tank ready for the next use.
Comes with our light weight, no rust Aluminium 3 gallon air tank, heat treated, shot blasted and anodised.

Includes:

• 1 x PX-06 12volt 100% Duty, 1.8cfm Air Compressors
• 1 x AT-03  5 port Boss Aluminium Air Tank
• 1 x 110-135psi Pressure Switch
• 1 x Braided Hoses with check Valve
• 1 x Brass 1/4″ Bung
• 1 x Drain Tap
• 1 x 40amp Relay
• 10 metres J844 DOT certified air line
• 1 x “Y” Check Valve
• 2 “Y” connectors
• 4 “T” connectors
• 1 x Digital BOSS Dual Read-out Gauge
• Independent Left & Right LED Switches
• Black Gauge Panel, 122mm x 78mm
• 5 x 1/4″ push fittings
• 3 x Mini 12v Electric Solenoid/Valves
• 3 x LED 12v Switch for actuating the Valves
• 1 x bottle of thread sealant
• Instruction Sheet

Operation of Incab kits with 3 LED buttons

When pressing the UP button the Air bags will inflate to matching pressures, then evenly inflate together in a controlled manner until button is released.
The Left and Right Air pressures are displayed on the Dual Digital gauge.
The Left and RightDown buttons are to individually deflate either side or together if both buttons depressed.
The 3 Button kits allows you to have different pressures Left to Right if extra load is on one side etc.
