Description
The BOSS Level Air Air Management System setup is designed to work with and support Air Ride Suspension setups for your vehicle using your own brackets,links and air bags, or using one of our air suspension systems like the 58-64 Impala FBSS kit
Using single air valve along with our 3/4HP PX07 12 volt compressor and 5 Gallon 16 litre 5 port light weight aluminium Air Tank
Ideal for the street cruiser that wants to be able lift the vehicle and ride off with out the switches.
This kit uses our Air Suspension Self Levelling System to control height through air pressure.

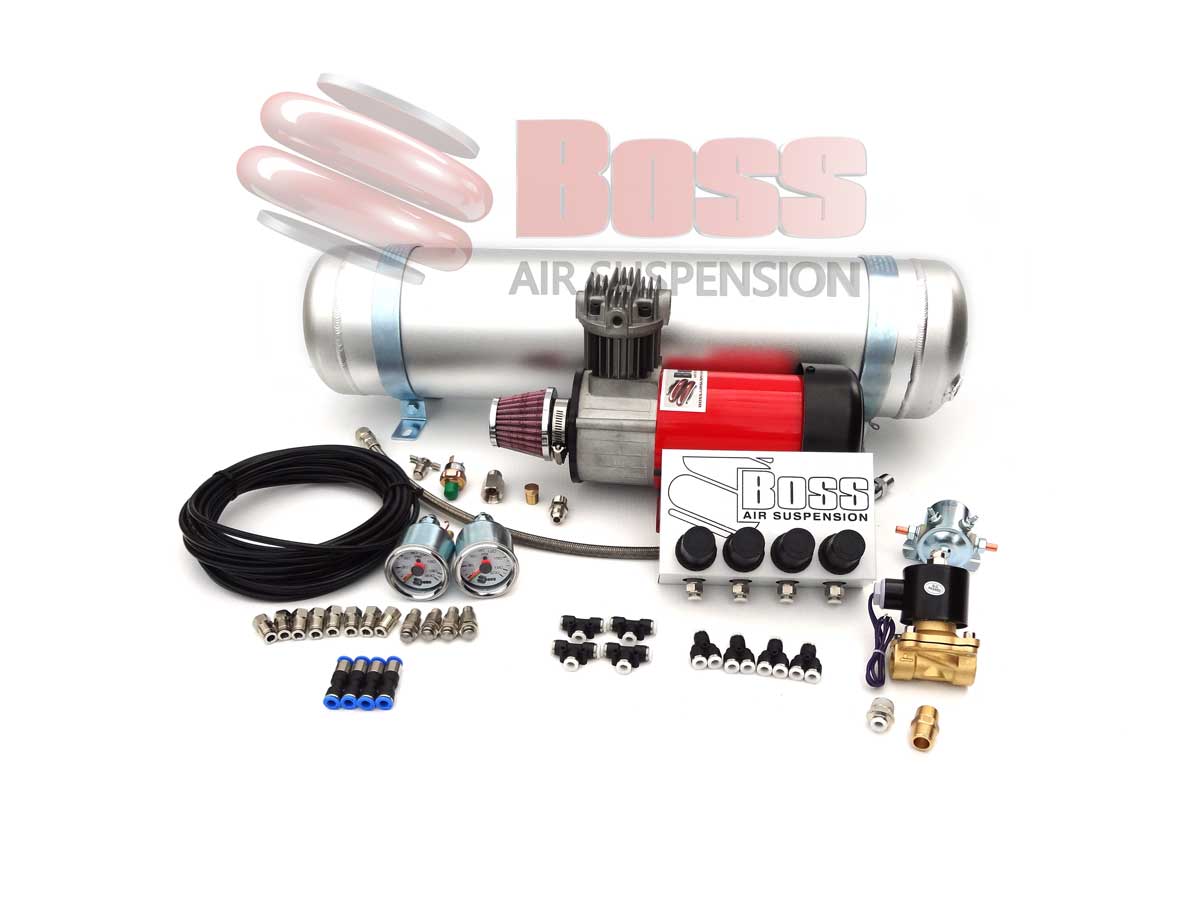

Boss Competition Air Management kit includes the following

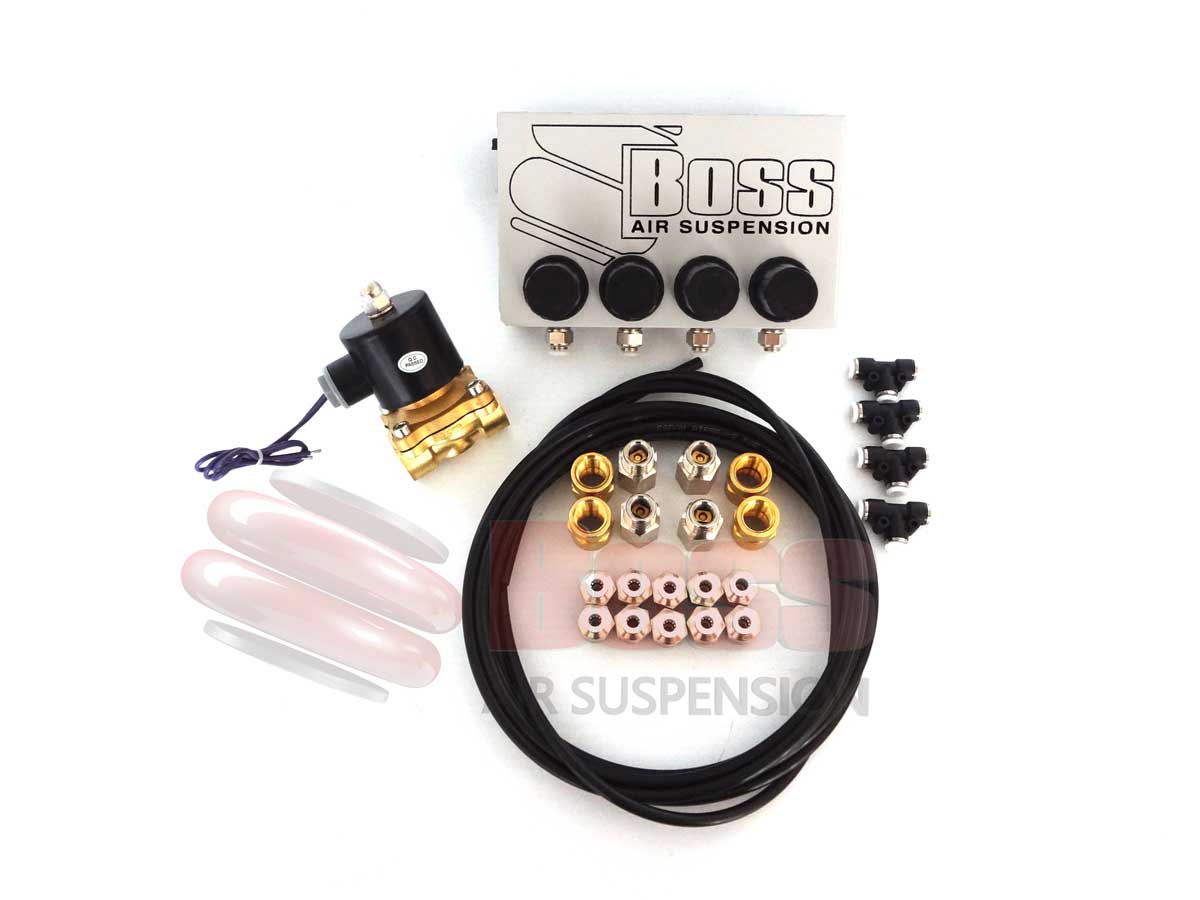

- 1 BOSS SELF LEVELLING KIT
- 4 x INLINE CHECK VALVE
- 4 x HEX BUNG 1/8”NPT PUSH CONNECT FITTINGS
- 2 x 200PSI BOSS GAUGE DUAL NEEDLE
- 8 x 1/4 TUBE X 1/8NPT PUSH CONNECT FITTINGS

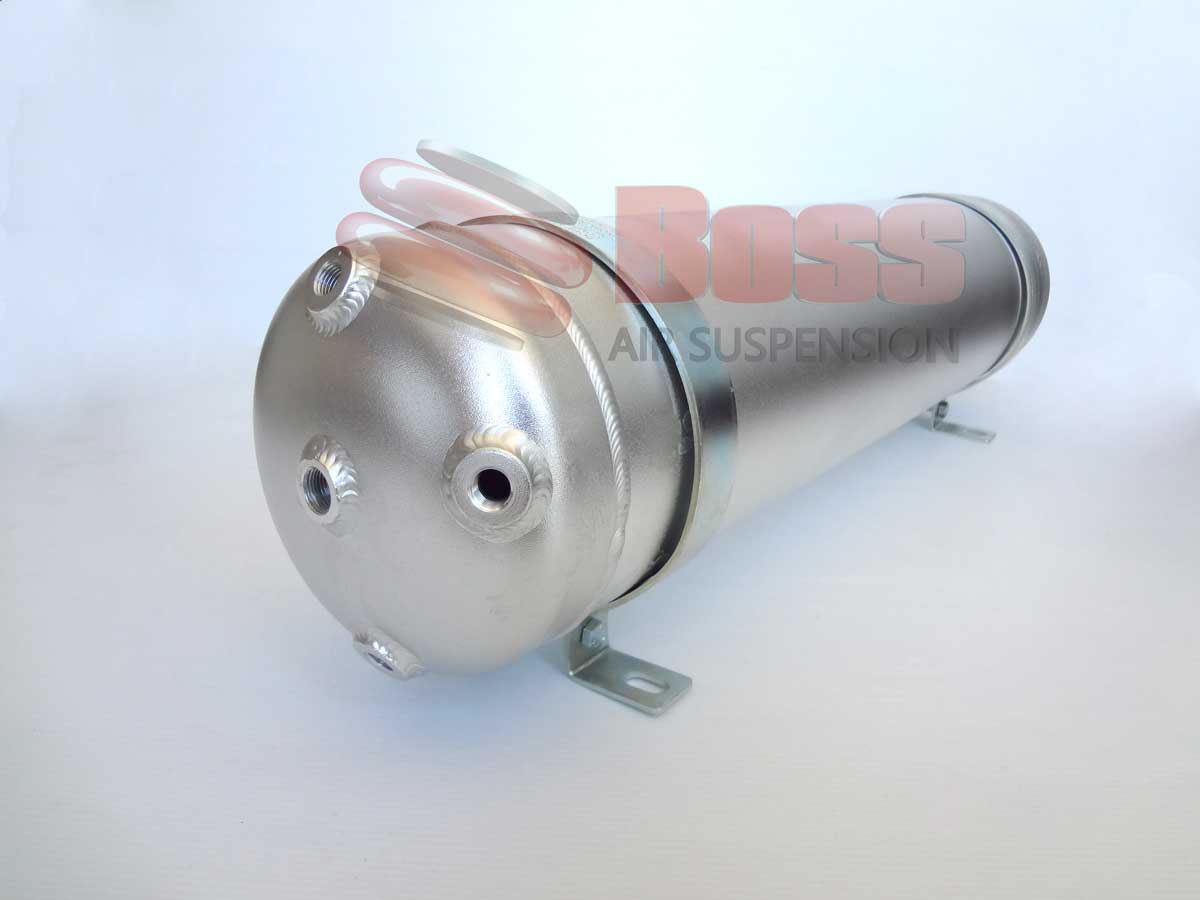

- 1 x 5 GAL 15LTR 5 PORT PORT ALLOY TANK
- 1 x COM-2W160-10-G3/8″ SINGLE VALVE
- 1 x 1/4 TUBE X 3/8NPT PUSH CONNECT FITTINGS
- 1 x 3/8″ HEX NIPPLE
- 4 x 1/4 TUBE X 1/4 TUBE X 1/4 TUBE Y FITTING
- 4 x PUSH BUTTON FOR GAUGE KIT 1/8″NPT MALE THREAD
- 1 x LARGE BOSS COMPRESSOR 3CFM 3/4 HP
- 1 x FLARE FOR PX-07 COMPRESSOR HEAD
- 1 x 3/8″ CHECK VALVE 3/8″ FEMALE X 3/8″ MALE OUT
- 1 x TEFLON BRAiDED HEAT RESISTANT HOSE 1/2FM FLARE X 5/8 MALE
- 1 x 100% DUTY RELAY/SOLENOID
- 1 x 110-150PSI PRESSURE SWITCH
- Instructions
Everything included for an easy to setup complete air management kit.
Please not that this kit does not include Bags, Metal Brackets or links etc.
