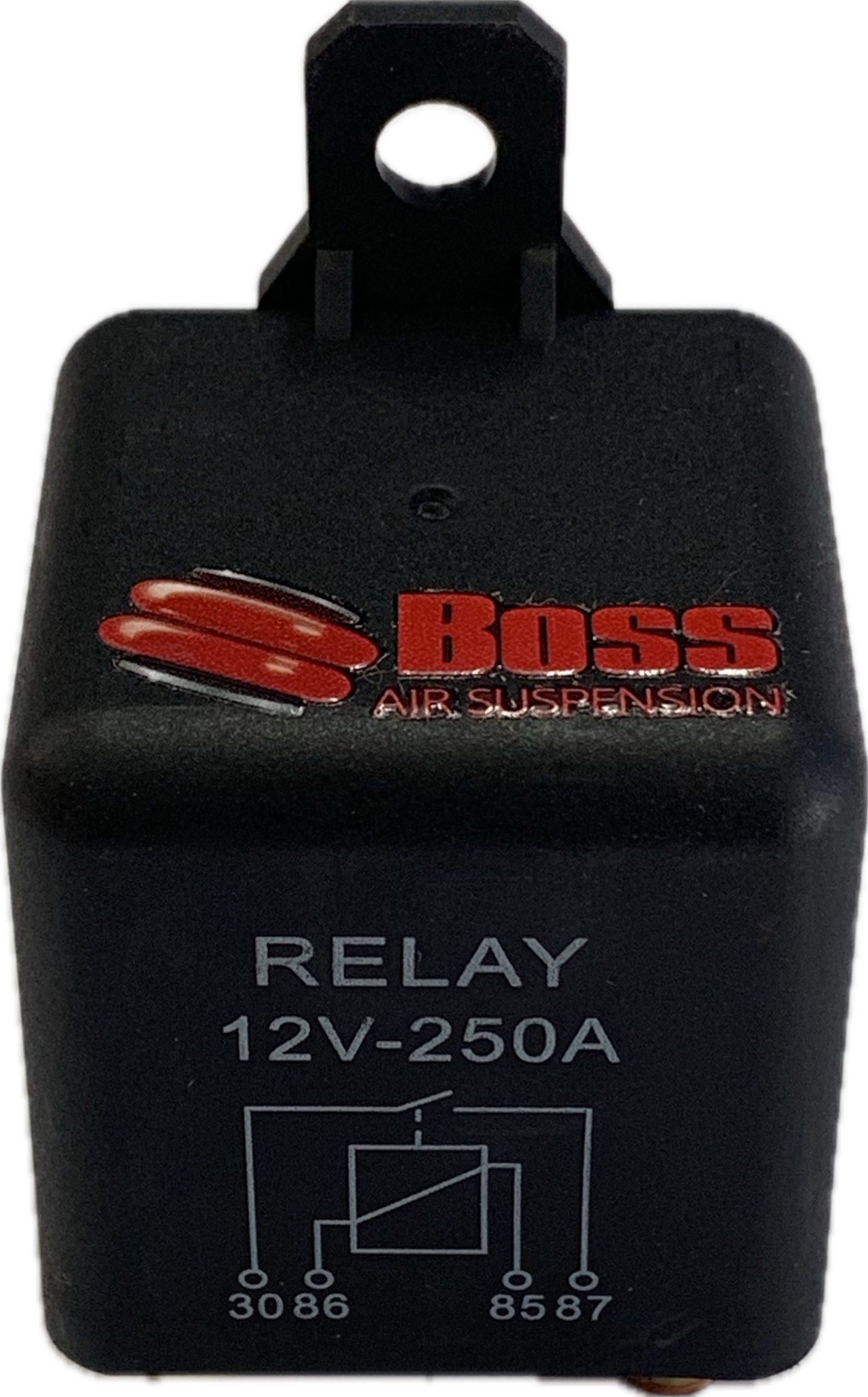

RELAY-250A
product description
12V DC 200A Heavy High Current 4 Pin Relay Switch for Car Truck Normal Open
High 200A coil capacity- able to handle those high current applications with ease, Heavy duty make or break (on/off) relay.
Hundreds of uses include- starter kills, dome light supervision, trunk release, polarity change, power door lock/actuator control.
Durable & Firm &
Stable Contact Load: High Power Ideal for universal 12V applications
Color: black Net weight: 100g Size: 45mm(L) x 45mm(W) x 45mm(H), about 1.77”(L) x 1.77”(W) x 1.77”(H)
Product Description
Contact Data:
Contact Form: Normal Open
Contact Ratings: No: 200A 14/28VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 500A (5ms)
Max Switching Voltage: 75VDC
Life Expectancy Mechanical: 10,000,000 Operations
Coil Specification:
Nominal Voltage(VDC): 12V
Coil Resistance (4.8W/2.4W): 30/60
Max Operate Voltage (VDC): 6.0~8.0
Mix Release (VDC): 1.2~3.6
Max Applicable Voltage (VDC): 15.6
Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Insulation Resistance: 100m ohm Min at 500VDC
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms

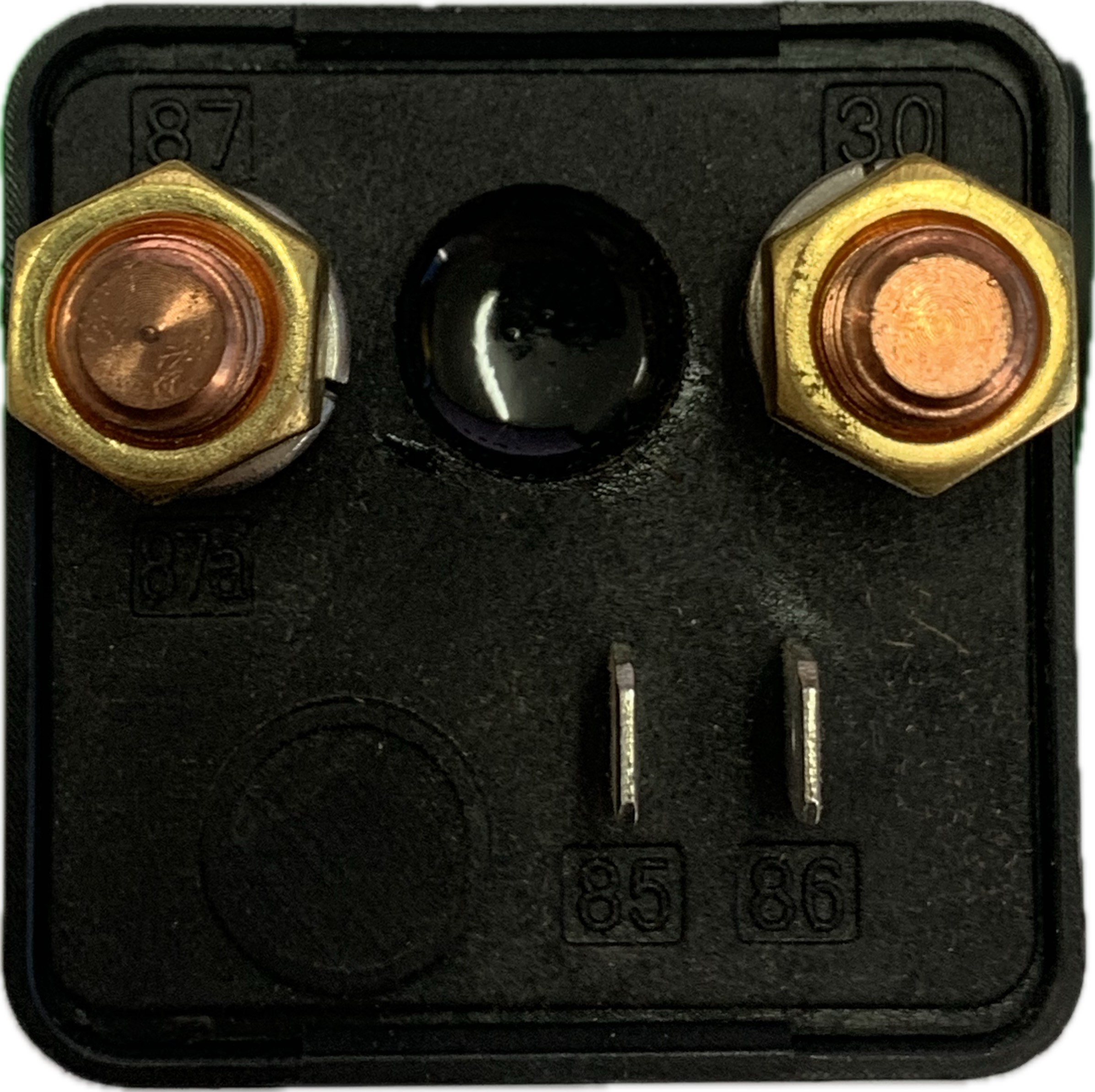

x2 8mm Terminals with x2 spade terminals
